HIWIN Corporation’s single axis stages utilize a combination of a motor driven ballscrew or belt and linear guideway system. These compact and lightweight units are customizable and can be easily transformed into a multi-axis system, making them suitable for a wide range of industrial applications. Depending on the application needs, Hiwin offers a single axis robot that will increase a systems productivity and efficiency.

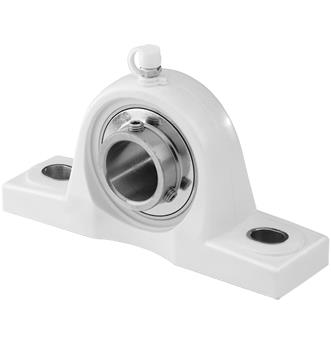

Corrosion resistant units for applications requiring clean operating environments. Glass reinforced PBT housings offer favorable mechanical, thermal and electrical properties. Features solid base, stainless steel wide inner ring bearing and bolt grommets. Lubricated with food grade grease. Pillow Type SUCP204 SUCP205 SUCP206 SUCP207 SUCP208 SUCP209 SUCP210 SUCP211 SUCP212 Flange Type SUCF204 SUCF205 SUCF206 SUCF207 SUCF208 SUCF209 SUCF210 SUCF211 SUCF212 Also all above thermoplastic / plastic blocks bearings comes with Bearing cap / Bearing cover

THERMOPLASTIC SERIES is a combination of the thermoplastic housing and the stainless steel bearings. This housing is light weight and made of high-grade glass-filled thermoplastic polyester. Hygienic construction : Solid housing base prevents from breeding of various germs. Plastic covers are also available to cover the shaft and bearing for better protection against contaminants and safety.

Combined Bearings are particularly suitable for truck lift columns and all other convoying systems which require profiles. They can afford load from both axial and radial direction at the same time. With the optimzed structure, the mount space can be saved, and the usage is also simple that just to weld the pivot in the mount plate, and it is not necessary to dismantle the whole set. The radial bearings are particularly suitable for automation and shift systems, which do not require heavy axial loads, and they come from the combined bearings and maintain the same features of construction. According to customer’s application, the OD surface can be designed to be flat , crowned and other special ones. With the optimum design and high standard material, Combined bearings can support heavy loads and shock loads, and have extended lifetime. Combined bearings are designed for easy installation and maintenance. The special lubrication system allows easy and reliable re-lubricate. We supply the whole range of combined bearings, both standard design and non-standard design. FULL RANGE 4.072 4.073 4.074 4.075 4.076 4.077 4.078

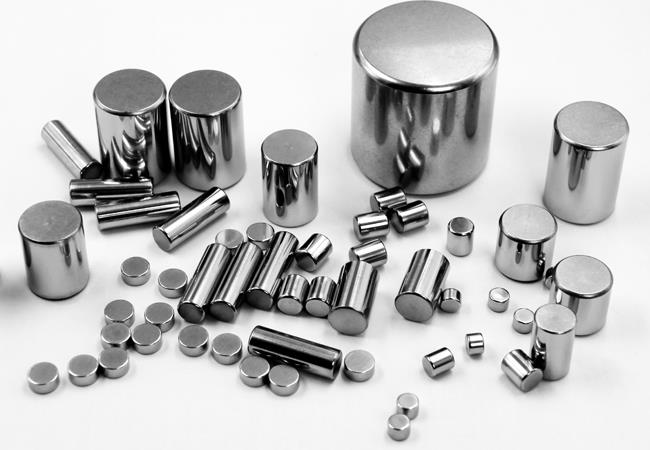

Get the Best precision rolling elements involving close dimensional tolerances (Needle Rollers & Cylindrical Rollers) to cylindrical pins which can be used as Shaft / Axle in variety of applications There are Different end of Rollers Flat End - BP Type Spherical End - BR Type Ground Flat End - BPM Type

Spherical Roller Bearing Units utilize single piece of cast iron housing and high capacity SR2200 series of spherical roller bearings, which have extended inner ring and concentric locking collar on which two setscrews are positioned at 62º apart. These units achieve simple and economic bearing arrangements where the high load-carrying capacity and little- maintenance are needed. The popular housing styles are such as P Two bolts pillow configuration PE Two bolts pillow configuration reinforced F Three or four bolts flange configuration FC Piloted four bolts flange configuration T Center pull take-up configuration All units utilize triple-protection seals. Dual lips positively contact NRB seals which ride on a ground surface of the inner ring extension with a trash guard shield next outside offer triple- protection to the ingress of contaminants, and without losing seal effectiveness even under purge and maximum misalignment. This seal is also designed to withstand the affection of misalignment throughout the alignment bearing range of ±1.5º. These units are available for either non-location “Free” or location “Held” in axial mounting. “Free” units are available to provide a maximum1.6 mm axial expansion. Brands Available : Timken , Rexnord , Link Belt

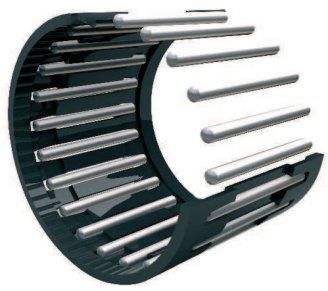

Needle Roller Bearings are bearings with cylindrical rollers that are small in diameter relative to their length. The ends of the rollers are relieved slightly to modify the line contact between the rollers and raceways. This prevents stress peaks at the roller ends to extend bearing service life. In spite of their low cross section, needle roller bearings have a high load carrying capacity. Therefore, they are extremely suitable for bearing arrangements where radial space is limited. Needle Roller Bearing Series TAF / TAFI / NK / NKI NAF / RNAF / NAO / RNAO / BR / LBR / HJ / MR / SJ / NCS NAS 50** / SL 04 5*** / NNF 50** Brands Available : IKO Japan , INA Japan, NTN Japan , Mcgill Bearings , Torrington Bearings

Linear Bushing model LM is a linear motion system used in combination with a cylindrical LM shaft to perform infi nite straight motion. The balls in the loaded area of the nut are in point contact with the LM shaft. This allows straight motion with minimal friction resistance and achieves highly accurate and smooth motion despite the small permissible load. The nut uses high-carbon chromium bearing steel and its outer and inner surfaces are ground after being heat-treated. The Linear Bushing is used in a broad array of applications, such as slide units of precision equipment including OA equipment and peripherals, measuring instruments, automatic recorders and digital 3D measuring instruments, industrial machines including multi-spindle drilling machine, punching press, tool grinder, automatic gas cutting apparatus, printing machine, card selector and food packing machine. We are engaged in offering wide range of LM Bush. SERIES--LM, LME, LMK, LMF, SC, SHO. LM Brands THK japan , NB Japan , IKO Japan

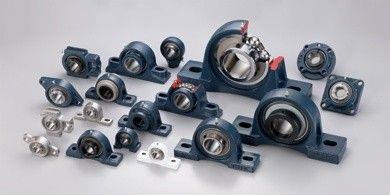

These bearings are combination of radial ball bearing, seal and housing of high-grade cast iron which conies in various shapes. The OD of the bearing and the internal surface of housing are spherical, because of this the unit of Self-alligning The radial load carrying capacity of this bearing is higher than that of the corresponding self-aligning ball bearing used for standard plummer blocks. Any misalignment of axis that arises from poor workmanship on the shaft or error in fitting will be properly adjusted. Range (Inch & mm) UC - UCP - UCF - UCT - UCFC - UCFL 204 to 220 UC - UCP - UCF - UCT 304 to 328 Brands Available : NTN Bearings , FYH Bearings , Asahi Bearings , FK Bearings , TR Bearings

Spherical roller bearings have two rows of rollers, a common sphered outer ring raceway and two inner ring raceways inclined at an angle to the bearing axis. The centre point of the sphere in the outer ring raceway is at the bearing axis. Spherical roller bearings are designed to accommodate heavy radial loads, as well as heavy axial loads in both directions. Bearing performance is not only determined by load or speed ratings. There are a number of other factors that contribute to bearing performance. To a large extent, performance is influenced by the geometry of the rollers, raceways and cages, the heat treatment, as well as the surface finish of all contact surfaces. 20200, 20300, 21300, 22200, 22300, 23000, 23100, 23200 24000 and 24100 Available in cylindrical and taper bore Available in steel and brass cage Brands Available : FAG Bearings , SKF Bearings , NTN Bearings , Nachi Bearings , Timken Bearings , NSK Bearings, ZKL Bearings
